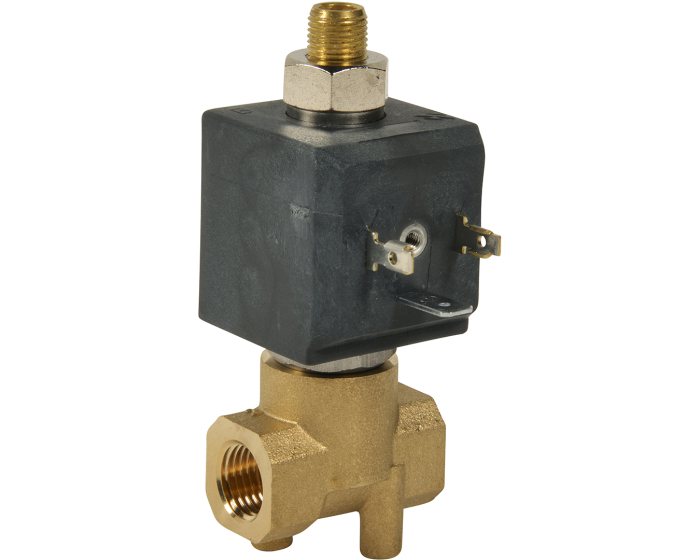

The solenoid valve type EBB 61/62 is a 3/2-way direct acting brass valve, normally open (NO) or normally closed (NC), all voltages. Connection: 1/4'' BSP.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0 |
| Coil type | B6 |
| Connector | T30 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 35.0 |
| Fluid | Water / Air / Neutral gases / Steam / Fuel oil |
| Protection index (IP) | IP 65 |
| Gasket | FKM |
| Kv (m³/h) | 0.12 |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 3/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC Normally closed | 041800N | S1004945 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC Normally closed | 041801N | S1004946 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 48 V AC Normally closed | 041802N | S1004947 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 110 V AC Normally closed | 041803N | S1004948 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Normally closed 12 V DC | 041806N | S1004949 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC Normally closed | 041807N | S1004950 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Normally closed 48 V DC | 041808N | S1004951 |
€44.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 230 V AC Normally open | 041850N | S1004952 |
€52.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC Normally open | 041851N | S1004953 |
€52.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 48 V AC Normally open | 041853N | S1004954 |
€52.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC Normally open | 041857N | S1004955 |
€52.01
(excl. btw)
|
add to cart |
